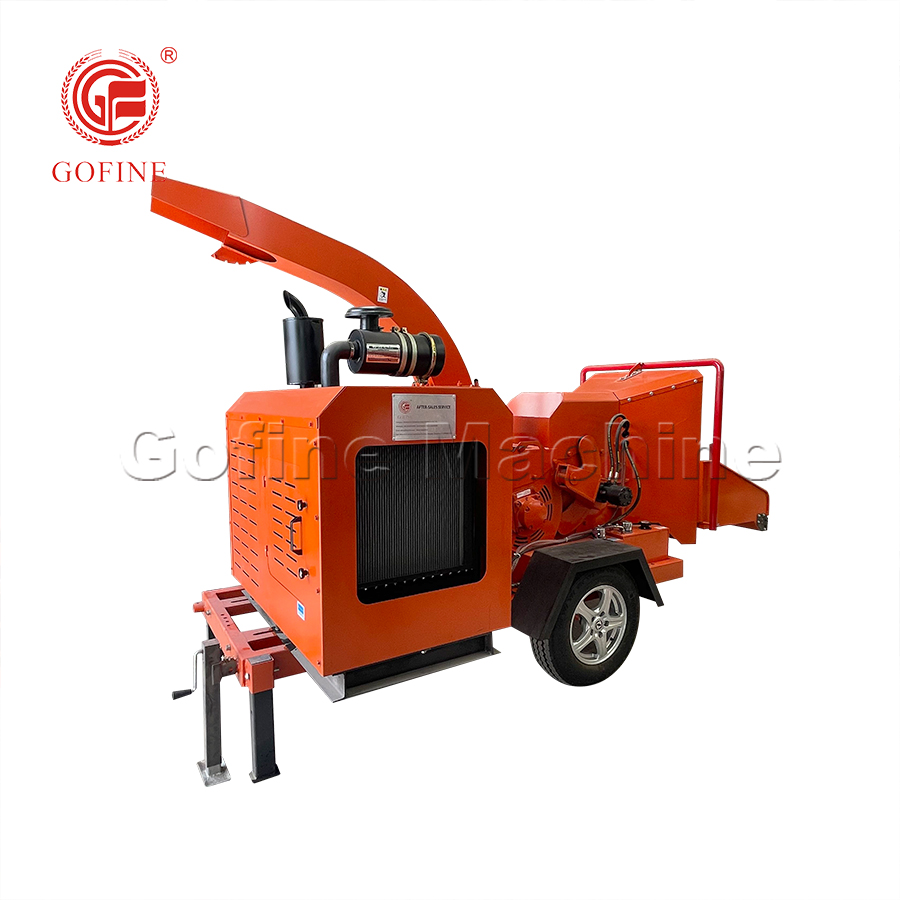

Product Description
Wood branch chipper is a kind of equipment specially designed to crush branches and other wood into small particles or fragments, which is widely used in gardening, agriculture and forestry. This equipment can not only effectively deal with the waste after garden pruning, but also convert it into reusable resources such as compost or mulch for organic fertilizer auxiliary processing.
Features
1. High efficiency: Wood branch chippers can quickly cut larger branches and wood into small pieces, significantly improving production efficiency.
2. Versatility: The equipment is suitable for many types of wood, including softwood and hardwood, and can handle branches with diameters between 35 mm and 75 mm to meet the needs of different users.

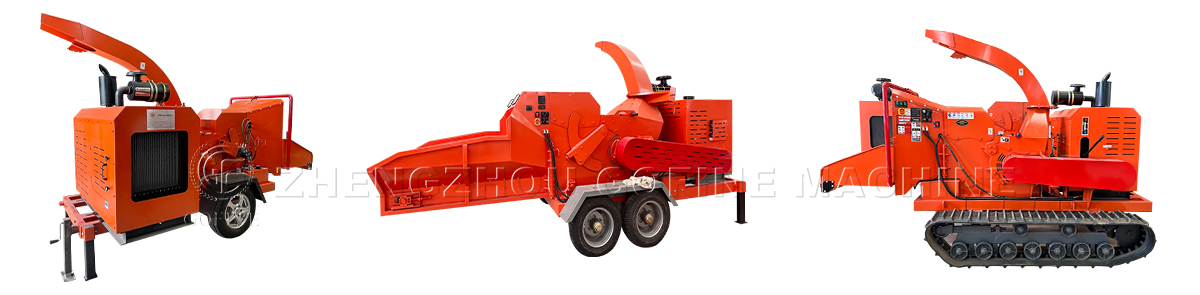

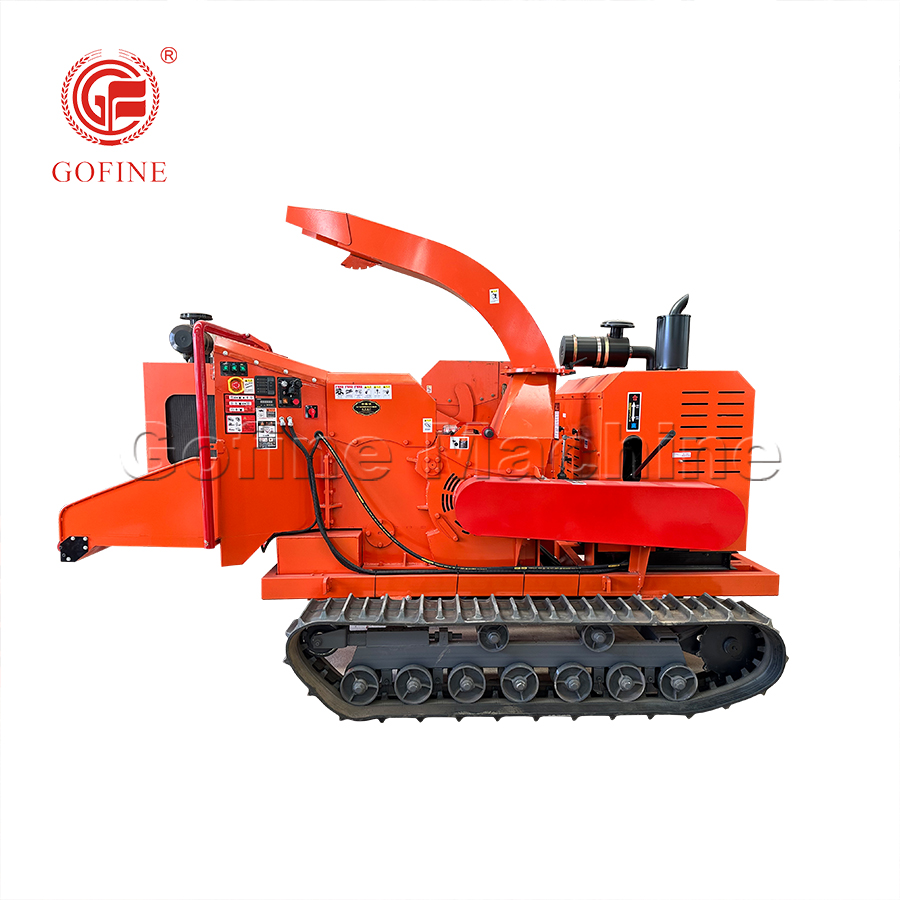

3. Strong mobility: The mobile branch chipper has a compact design, which is convenient for flexible use in different working areas. It is equipped with different wheels and tracks and is suitable for operation on various terrains.
4. Easy operation: The equipment has a user-friendly operating interface, easy maintenance, and a long service life.
Application
Gardening: used to process branches and plant residues after garden pruning.
Agriculture: can be used for the treatment of straw and other plant materials in farmland.
Forestry: in the process of wood processing, it helps to deal with waste wood and branches.
The efficiency and versatility of wood branch crushers make them play an important role in the effective utilization of resources and sustainable development.
Working Process
The branches to be crushed are evenly fed into the crusher through the conveyor at the feed port. The equipment is equipped with 4-8 sets of blades. The branches entering the crushing chamber will be cut by the high-speed rotating blades and quickly torn into small pieces. The discharge port can rotate 360° and the height is adjustable. It supports manual control of forward, reverse and stop. It is also equipped with convenient configurations such as taillights, feed lighting, and folding hand-cranked jacks.
Technical Parameters
| Model | GF-60032 | GF-80080 | GF-6180 |
| Capacity | 1-20 | 3-5 t/h | 6-8 t/h |
| Startup method | Electric start |
| Host speed | 3000r/min | 2600r/min | 1600r/min |
| Feed roller diameter | 280mm | 400mm | 600mm |
| Feed roller power | Hydraulic motor |
| Number of blades | 4 moving knives, 1 static knife | 8 moving knives,1 static knife |
| Feed port (mm) | 600x400 | 800x620 | 1420x900 |
| Wheel hub | 13-inch | 14-inch | 16-inch |
| Specifications (mm) | 2450x1300x1800 | 3680x1600x3000 | 5600x2200x2900 |

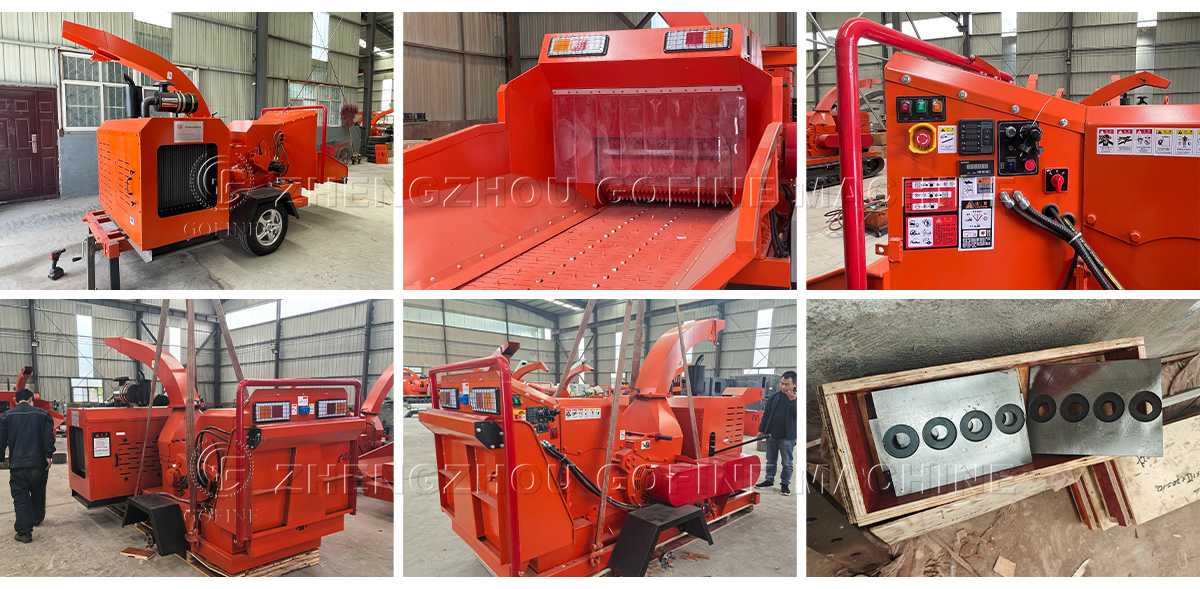

Product Details
